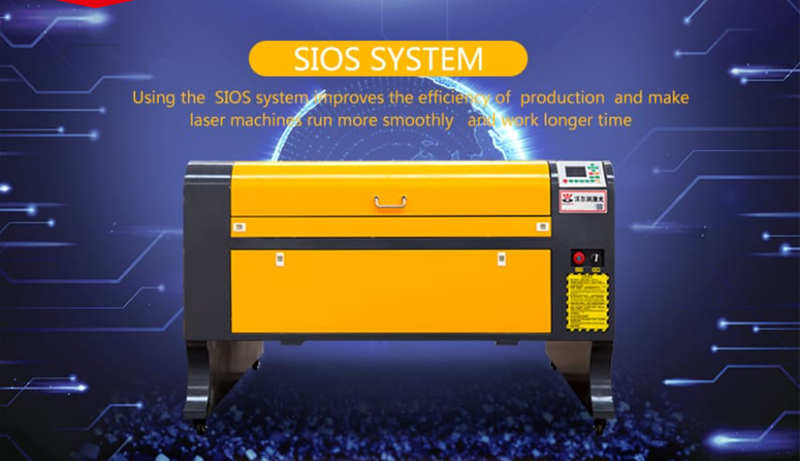

TB-9060 (universal laser cutter)

No price
  • Technical Parameters

Star series is the most powerful universal laser cutter, industrial laser engraving machine, almost all materials can be processed, versatile, simple to use.

1. Model: 9060 laser engraving machine

2. Working area: 900mm*600mm / 19in*16in (L*W)

3. Laser power: 60w /80w /100W

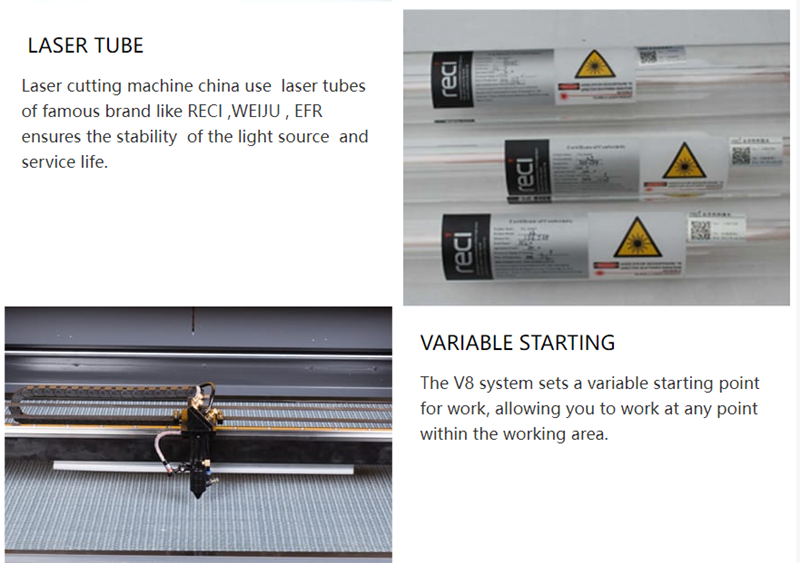

4. Laser type: CO2 sealed laser tube,water-cooled 10.6um

5. Engraving speed: 0-60000mm/min

6. Power supply: 220V±10% /50HZ , 110V±10%//60HZ

7. Min. shaping character: Letter 1.0 x 1.0mm

8. Graphic format supported: BMP, PLT, DST, DXF, AI,CDR

9. Software supported: CorelDraw, PhotoShop, AutoCAD

10. Laser Output Control: 1-100% software setting

11. Highest Scanning Precision: 2500DPI

12. Resolution ratio: <0.01mm

13. Location precision: <0.01mm

14. Working temperature: 0-45

15. Operating humidity: 5%-95%( without condensed water)

16. Machine dimension: 1420mm*1100mm*1070mm/57in*43in*42in (L*W*H)

17. Net Weight /Gross weight: 230KGS/300KGS

18. Optional part: Up and down table, rotary attachment, red light pointer, auto focus system
