Rubber crawler shot blasting machine cleaning equipment TB-NAW100

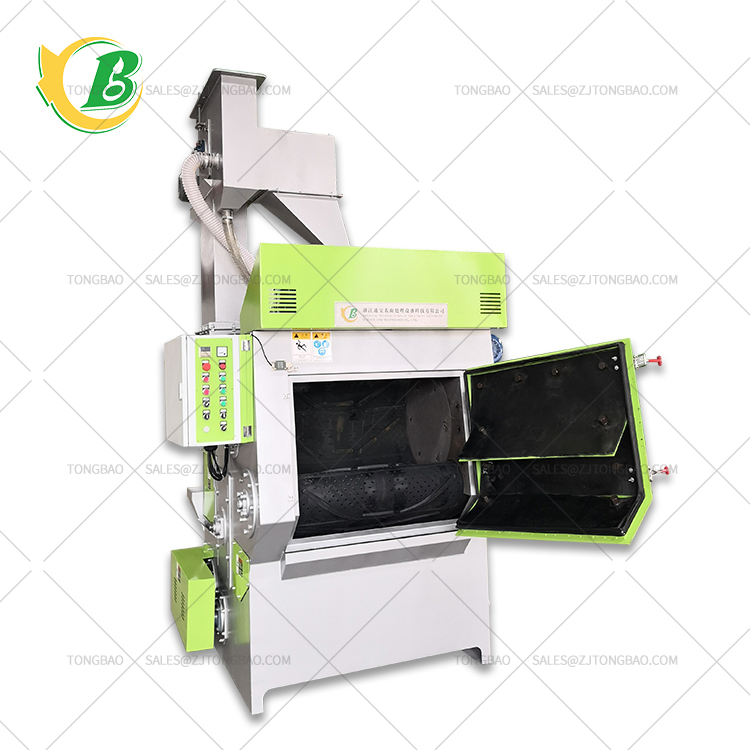

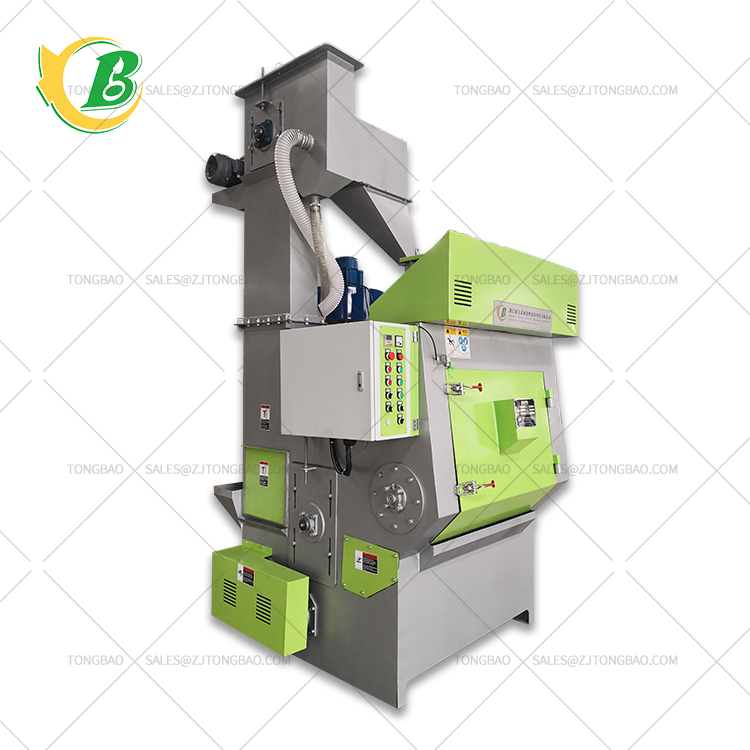

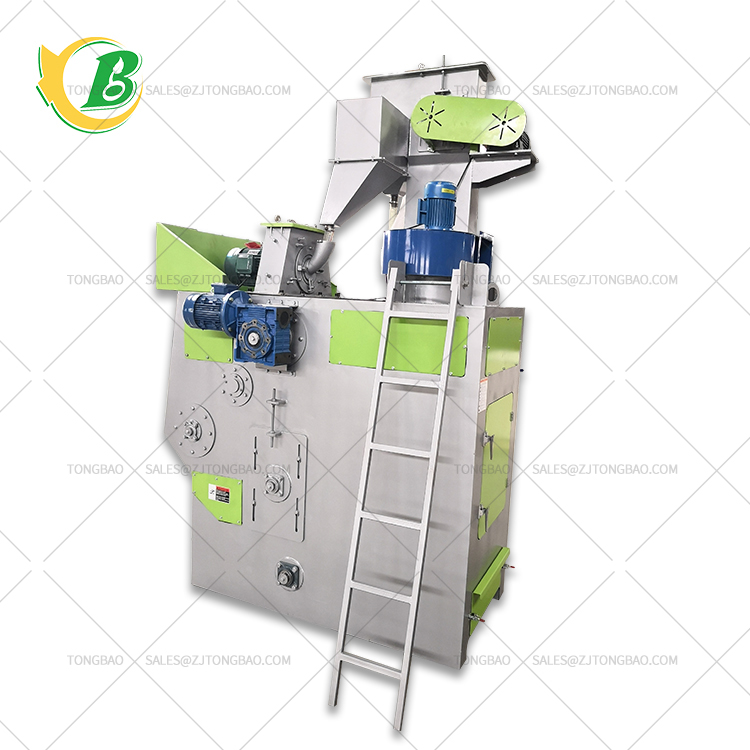

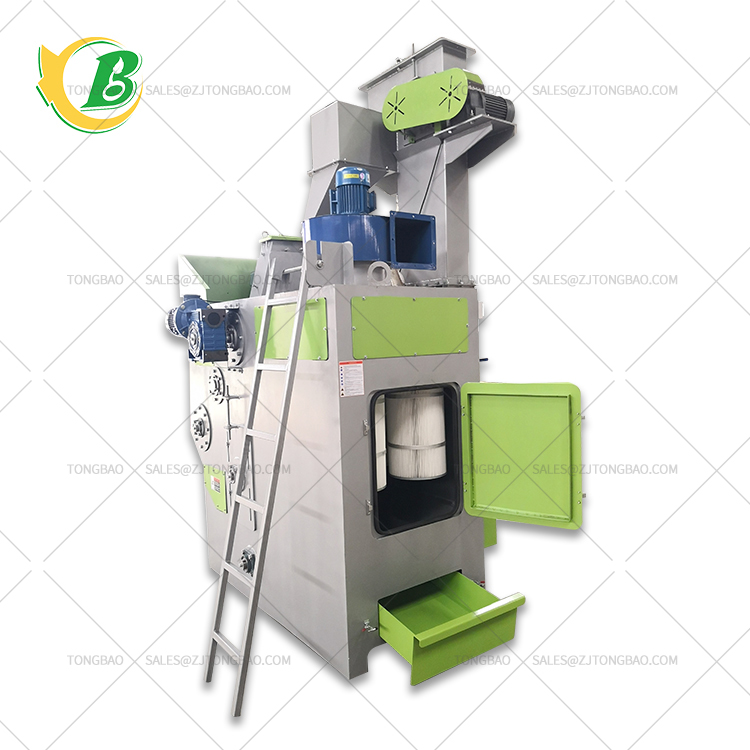

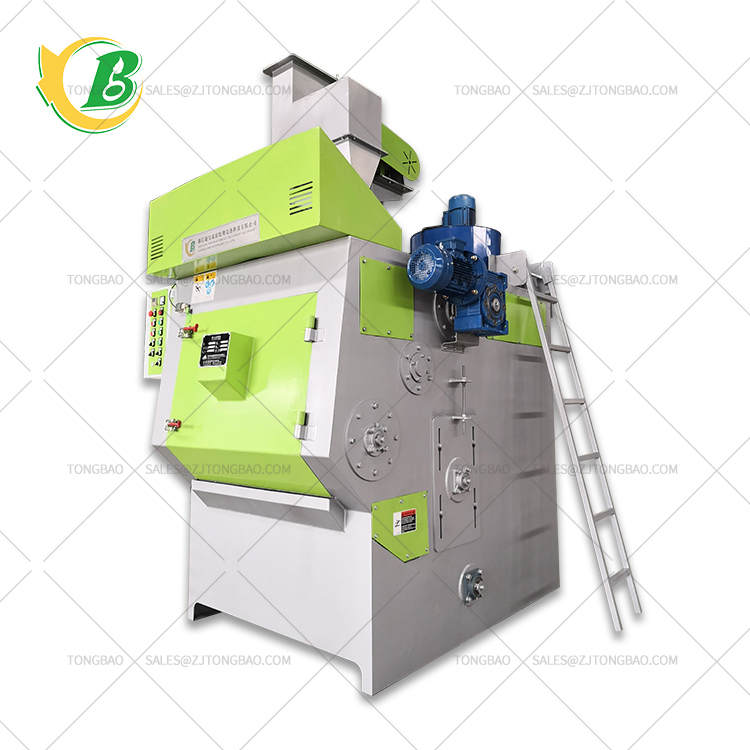

Rubber crawler shot blasting machine cleaning equipment TB-NAW100 This model is a crawler drum shot blasting machine TB-NAW100, our machines can be customized according to requirements.
Crawler shot blasting machine TB-NAW100 parameters Diameter of track end disc: φ600mm Speed of crawler end disc: 3.6r/min Track drive motor power: 1.5kW The largest single piece weight of the workpiece to be cleaned: 10kg The maximum load capacity of the roller (easy to roll parts): 200kg Productivity: 600~1200kg/h (gray castings) Shot blasting machine: Speed: 2930r/min Impeller diameter: φ360mm Shot blasting volume: 120kg/min Shot blasting power: 7.5kW Air volume of dust collector: 2200m3/h Fan power: 2.2kW Total installed capacity: 11.50kW Machine dimensions (L×W×H): 2080mm×1810mm×3300mm Total weight of the machine (approximately): 2000kg
