Semi-automatic sandblasting machine equipment for circular saw blades TB-SC1010-3A

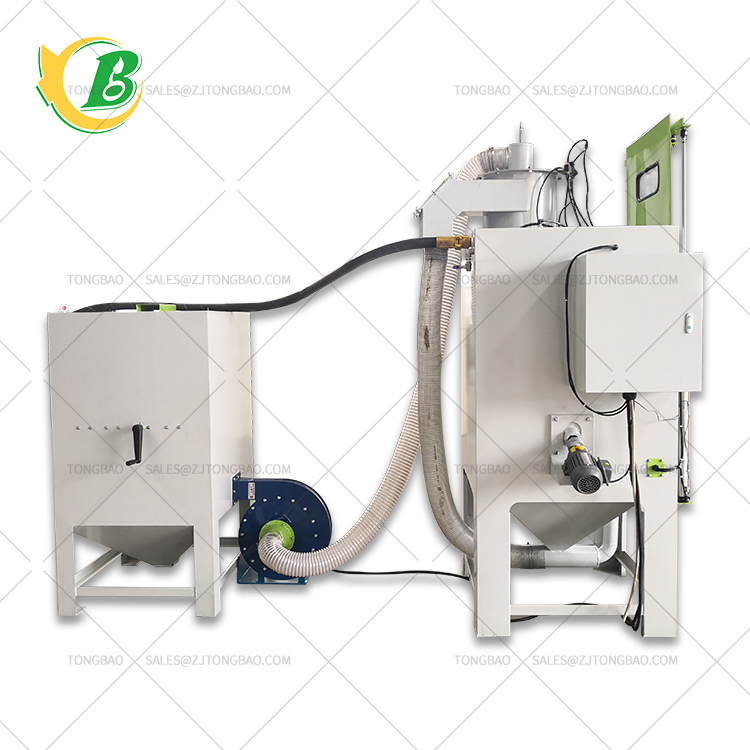

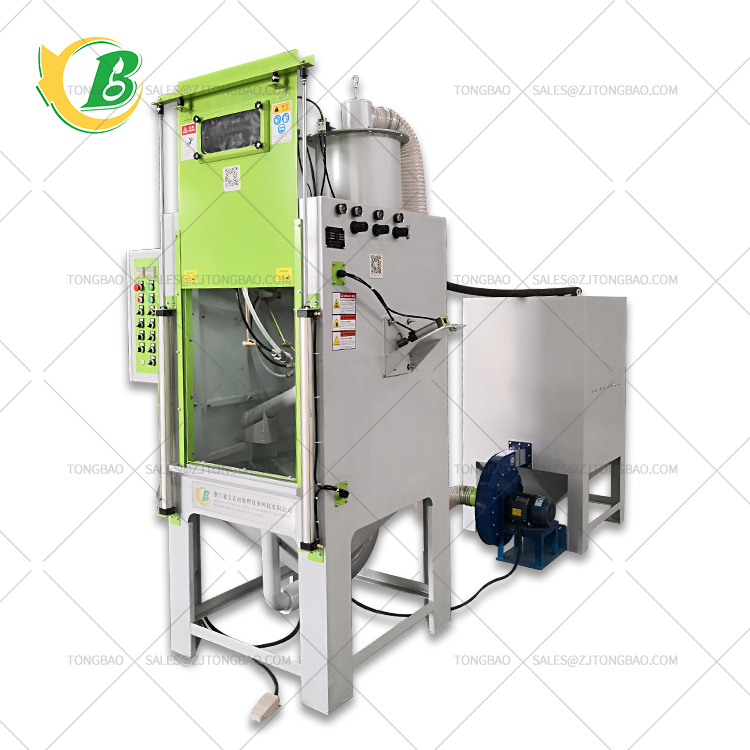

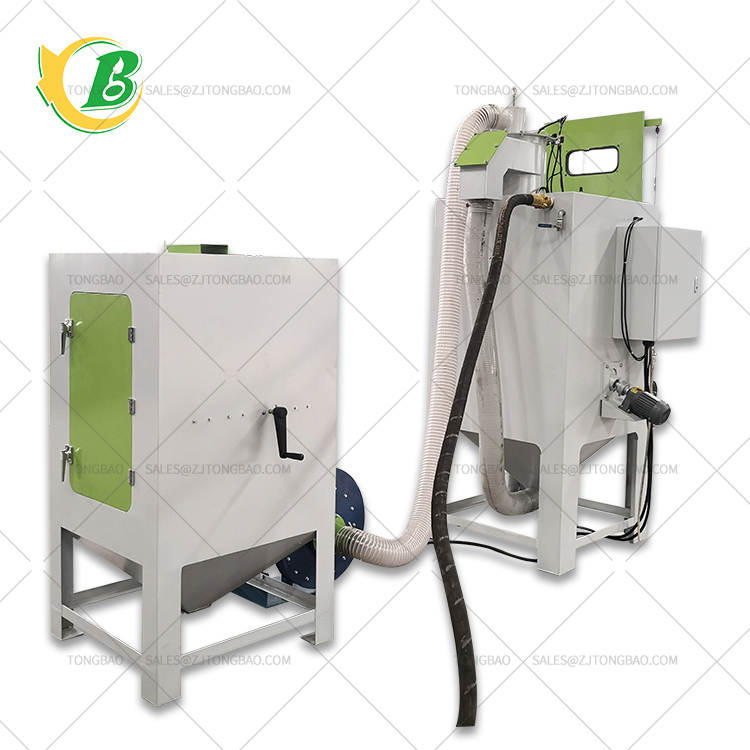

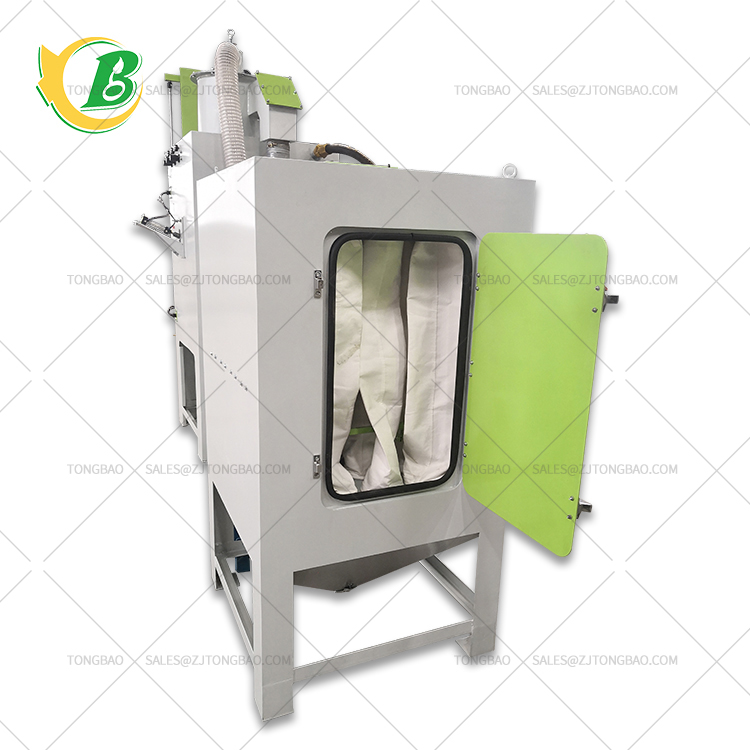

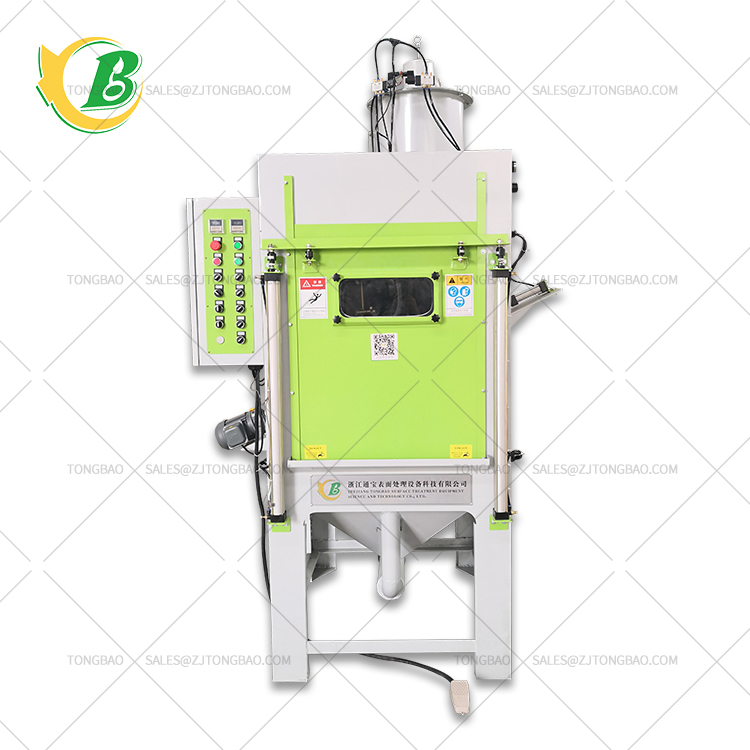

Semi-automatic sandblasting machine equipment for circular saw blades TB-SC1010-3A This type of sandblasting machine is suitable for the sandblasting of circular saw blades. The range of processing circular saw blades is 80~600mm in diameter.
Technical parameters of semi-automatic sandblasting machine for circular saw blades: Model: TB-SC1010-3A Main machine overall dimensions (mm): about L1530×W1320×H2510MM Dust collector size (mm): about L1440×W950×H1650MM Machine shell material: Q235 Workpiece rotation speed: electric rotation Circular saw blade processing range: diameter 80~600mm Disc saw blade fixing method: pneumatic clamping Workpiece rotating motor power: 400W, 1 set Abrasive recovery method: pneumatic cyclone Lighting in the machine cabin: 220v, 1×8w led light Equipment compartment door: front pneumatic door Dust removal method: bag type Dust removal power: 2.2KW Number of spray guns: 3 Nozzle diameter (mm): φ8 (optional) Power supply: total power about 3.0kw, 380v (220), 50hz Compressed air source pressure: 5-8bar (kg/cm2) Compressed air source volume: ≥3m3/min |
